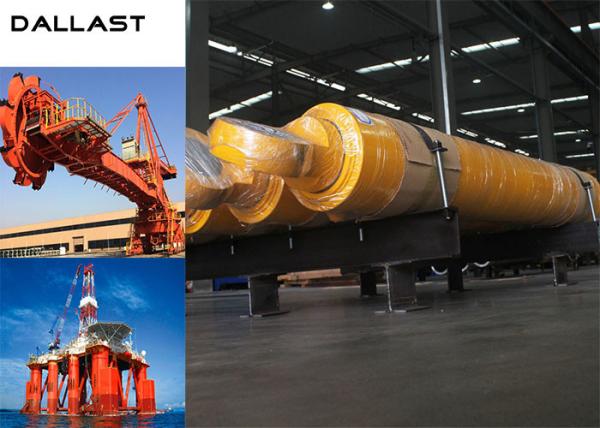

Double Acting Customized High Pressure Hydraulic Cylinder for Industrial Truck​

Key Specifications/Special Features:

Product description:

Double-acting applications
Standard color: Any color
Steel piston and five piece seal
Port: SAE (NPTF port or other can be available)
100% hydro-pressure test
Rod surface treatment:
Superior quality chrome plated
Apply Loctite to rod end thread

Visit our website to select standard cylinders, we will offer best
price, for custom-made cylinders, feel free to send us drawings for pricing

Double Acting:

The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.

Product Information :

About Our Company:

We are Dallast Technology Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.
Products: full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.
15 years in manufacturing hydraulic cylinders, application for water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.
The only one super size cylinder manufactuer in China.
Full experience in design, produce, mounting, testing, operation and maintenance.
Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.
Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.
2000m2 synthetic office building of computer control net work center.
Gs, RoHS, Ce, ISO9001 quality management system.

FAQ :

Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer with Exporting License.

Q2: How long is your warranty period?

A2: We offer 13 months warranty period after on board.

Q3: What is your payment term?
Payment term:

1) Pattern and tooling: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.

2) Samples: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.

3) Products: 30% prepaid as order deposit;70% paid before EX-work.

Q4: How can I decide which model hydraulic cylinder to buy?

A4: Firstly you can check our catalogue of the hydraulic cylinder, if there is not what you need, we can customize as per your requirements.

Q5: How about the warranty and after-sale service?

A5: One year warranty, and we can offer you long-distance after-sale service 7*24h

Product Show :

Shenzhen Dallast Technology Co ., Ltd. it is hydraulic cylinder manufacturing enterprise integrated with professional designing, production and sales . Company focused, specialized in various types of hydraulic cylinder.Is widely used in dump trucks , dump trailers, garbage trucks, excavators, loaders , forklifts, cranes and other projects , ships, mining machinery and fire engines , sanitation vehicles and other special vehicles, agricultural machinery , heavy machinery and many other fields .
