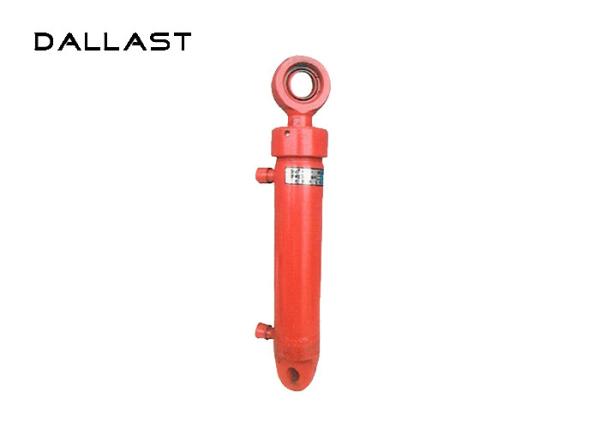

OEM / ODM Double Acting Hydraulic Cylinder Farm Tractor Loader
Chrome Long Stroke
Types of Hydraulic Cylinders
Double acting hydraulic cylinders use hydraulic pressure to actuate
the rod to extend and retract in both directions.
High pressure hydraulic cylinders have significantly smaller and
lighter designs than standard cylinders, which saves substantial
weight and space in equipment. High pressure hydraulic cylinders
are used in applications that need high forces and short or medium
strokes, such as material testing and material transforming.
Hydraulic pistons are short, cylinder shaped discs housed within
cylinder barrels to compartmentalize the enclosed space within
hydraulic cylinders.
Hydraulic rams are the large output pistons.
Mobile hydraulic cylinders are used in many applications, such as
snowplows, construction equipment, personnel lifts and material
handling equipment.
| Application | Tractor, Corn combine harvester, Rice combine harvester |
| Coating | All tubes are chrome plated |
| Working pressure | 5MPa-36MPa |
| Bore size | 40mm-80mm |
| Stroke | 200mm-12000mm |
| Color | Black, Blue, Yellow, White, Red etc |
| Certification | ISO9001: 2008, SGS, TS16949 |
| Warranty | One year after shipping arrival |
| working temperature | —30° to 80° |
Product Process:
1. Multi-roll straightening machine, with 10 straightening points,
achieves the automatic rolling straight improving the efficiency
greatly
2. Heat treatment to obtain work pieces with different properties
by changing their internal microstructure or surface chemical
composition.
3. Cylindrical degree can be controlled within 0.03mm and the
surface roughness is up to 0.4 by honing with range:φ40mm-φ450mm
and longest length: 12000mm
| ZG/HSG series hydraulic cylinder for Harvesting Machinery |
| Type | Plunger diameter(mm) | Strock(mm) | Installation distance(mm) |
| ZG50*120-340 | 50 | 120 | 340 |
| ZG50*200-470 | 50 | 200 | 470 |
| ZG50*310-580 | 50 | 310 | 580 |
| ZG63*240-656 | 63 | 240 | 656 |
| ZG63*195-405 | 63 | 195 | 405 |
| ZG80*275-1017 | 80 | 275 | 1017 |
| TG-E50*400-810 | 50 | 400 | 810 |
| TG-E50*445-955 | 50 | 445 | 955 |
| HSG80/45*885-1321 | 80/45 | 885 | 1321 |
| HSG50/30*200-555 | 50/30 | 200 | 555 |
| HSG40/22*230-370 | 40/22 | 230 | 370 |
| HSG40/22*69-362 | 40/22 | 69 | 362 |
Product advantage:
1. All the parts are assembled into complete cylinders according to
the strict assembly instructions by skillful workers in dust-free
workshop.
2. Do proof pressure and performance tests to check whether the
cylinders can operate smoothly and stably under the specified
pressure with no leakage and deformation.
3. Do the painting including high quality primer and topcoat to
obtain beautiful appearance and protect the cylinders against the
anticorrosion.
4. Wooden pallet or boxes packing with plastic films wrapped on the
surface, suitable for long-time sea transport.
