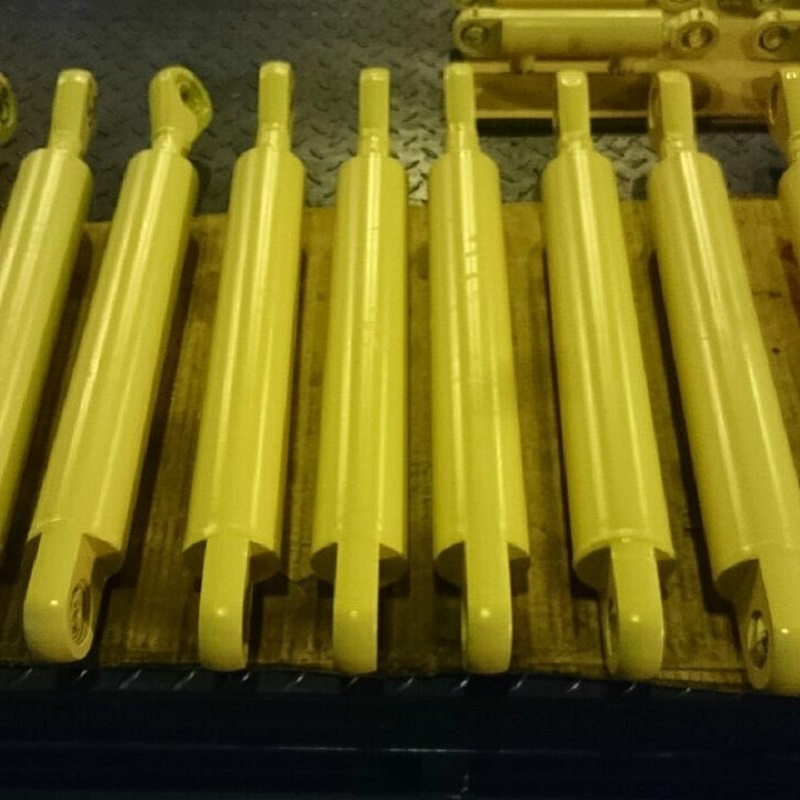

Piston rod Single Acting High Press Telescopic Dump Truck Hydraulic
Cylinder
Specification:
| type | working pressure(MPa) | stroke(mm) | Rated theoretical thrust |
| MAX(N) | MIN(N) |
| 3TG-E110*450 | 16 | 450 | 150 | 60 |
| 3TG-E110*340 | 16 | 340 | 150 | 60 |
| 3TG-E110*300 | 16 | 300 | 150 | 60 |
| 2TG-E110*510 | 16 | 510 | 150 | 100 |
| 3TG-E90*385 | 16 | 385 | 100 | 30 |
| 3TG-E90*340 | 16 | 340 | 100 | 30 |
| 3TG-E90*300 | 16 | 300 | 100 | 30 |
The Single-Acting Hydraulic Cylinder block models a device that
converts hydraulic energy into mechanical energy in the form of
translational motion. Hydraulic fluid pumped under pressure into
the cylinder chamber forces the piston to move and exert force on
the cylinder rod. Single-acting cylinders transfer force and motion
in one direction only. Use an external device, such as a spring,
weight, or another opposite installed cylinder, to move the rod in
the opposite direction.
The choice of hydraulic components often plays a decisive role in
the leakage of the hydraulic system
This determines our technical staff in the new product design, the
improvement of old products, dump truck hydraulic lifting system
custom,
After a repeated number of cycles a certain amount of wear is to be
expected, so we offer seal kits for maintenance of cylinders,
giving your machine continued top performance and an extended life
cycle.
The choice of cylinder, pump, valve, seal, hydraulic accessory,
etc., The principle of selecting the best, choosing the best and
the cheapest will be prudent and comparative.
Quality Control:
1. External Inspection: Purchased Item Inspection, Outsourcing Item
Inspection
2. Process Inspection: First Inspection, Random Inspection,
Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100%
Hydraulic Test
4. Type Inspection
Every piece of hydraulic cylinder are tested and will send out only
after they are pasted the each test.
Our company has abundant technical force and perfect testing means.
By making wide technical and business cooperation with many related
enterprises, universities, colleges and institutes both at home and
abroad, and employing senior engineers and software engineers, we
have greatly strengthened and improved our designing, processing,
and testing abilities.
What is the information we require for customer before we make the
quotation?
a. Bore size:
b. Stoke length:
c. Rod Diameter:
d. Mounting Type:
e. Mounting length:
d. paint color requirement:
2.Application Data:
a. Type of machine (loader, steer loader, excavator, etc.):
b. Type of function (hoist, swing, steering, etc.):
c. Type of structure (piston, telescopic):
d. Single acting or double acting
e. Operating Pressure
Process Flow
1. Customer RFQ
2. Information Confirm (Drawing or samples specific reuqiremnets)
3. Quotation (Reply in 24 hours)
4. Order Confirm (PI, PO)
5. Sample producing (upon receipt of 30% deposit)
6. If sample approved, go to main production
7. Delibery ( balance T/T, Customs clerance documents, 70% against
B/L
