Industrial Trailer Dump Truck Hydraulic Cylinder , Hydraulic Oil
Cylinder
The improved cylinder limit structure combines the advantages of
many domestic and foreign advanced products to maximize the safety
and reliability of the dump truck.
The new guide structure using high-tech materials, aerospace
lubricants added materials to improve the sliding orientation of
molybdenum disulfide, the cylinder lift more smooth, longer service
life.
Dallast cylinder with a common domestic installation size, can make
the cylinder to achieve higher interchangeability

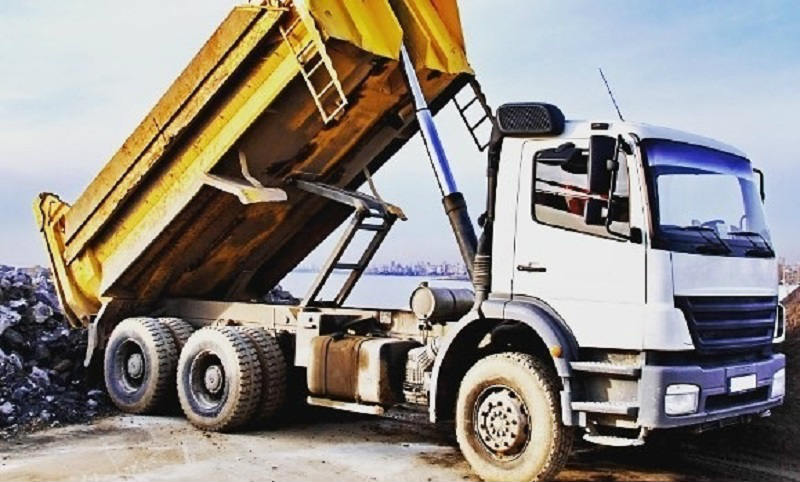

Telescopic front end hydraulic Cylinder
| Models | Extension | Bore Dia | Stroke | Lug dia | Closed length | Pressure |
|
| 5TG-F196*6180ZZ-00 | 5 | 196 | 6180 | 60 | 343 | 20 |
| 5TG-F206*7300ZZ-00 | 5 | 206 | 7300 | 65 | 343 | 20 |
| 5TG-F221*9030ZZ-00 | 5 | 221 | 9030 | 65 | 486 | 20 |
| 5TG-F248*9030ZZ-00 | 5 | 248 | 9030 | 75 | 486 | 20 |
Front end hydraulic cylinder common problem:
First, the fuel tank leakage or leakage
1. Serious overload. Due to the internal sealing lip cylinder
cannot withstand excessive pressure and leakage.
2. Serious partial load
3. The top of the cylinder is not installed vertically, the user
caused by improper operation of the upper bracket deformation or
displacement.
4. User improper operation caused by cylinder deformation. Cabin in
the lifting or lowering work violently shaking or overturning, so
that the cylinder was a strong impact, causing the cylinder
deformation or bending
5. Barrel strain.
6. Due to unreasonable design, so that the top of the cylinder
work, and the carriage interference caused by the cylinder strain
7. Cylinder trunnion and bracket hole with the gap is too large (2
mm) caused by the top cylinder partial load caused by bar strain.
8. Cylinder head nut loose caused by the top cylinder cover
scratches the barrel caused by strain
Control of hydraulic system leakage control program
The choice of hydraulic components often plays a decisive role in
the leakage of the hydraulic system
This determines our technical staff in the new product design, the
improvement of old products, dump truck hydraulic lifting system
custom,
The choice of cylinder, pump, valve, seal, hydraulic accessory,
etc., The principle of selecting the best, choosing the best and
the cheapest will be prudent and comparative.
Advantages we have:
1. Experienced hydraulic cylinder products supplier
2. Professional design team and sales department for your service;
3. Using imported materials for seal kits.
4. The structure kits are made by high-strength Manganese plate
5. Advanced surface treatment:
A. Environmental automatically pipelined painting
B. Cleaning with automatic washing machine
C. Assembling in seal clean workshop
