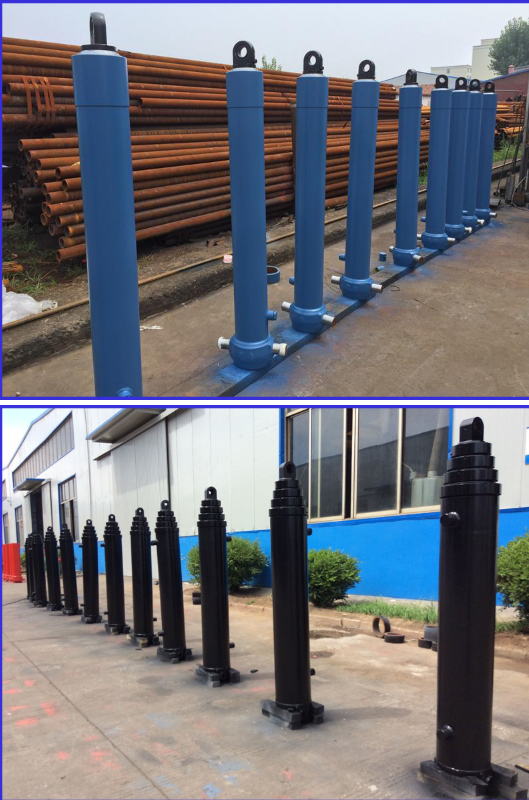

Hydraulic Telescopic Cylinder Hyva Type3-5 Stages Dump Trailer
| Model | Stage | Largest Stage Diameter mm | Stroke
mm | Mounting distance
mm |
| FE-3-110-3205 | 3 | 110 | 3205 | 1449 |
| FE-3-110-3460 | 3 | 110 | 3460 | 1609 |
| FE-3-129-3460 | 3 | 129 | 3460 | 1449 |
| FE-3-129-3880 | 3 | 129 | 3880 | 1609 |
| FE-3-149-2900 | 3 | 149 | 2900 | 1320 |
| FE-3-149-3200 | 3 | 149 | 3200 | 1420 |
| FE-3-149-3500 | 3 | 149 | 3500 | 1520 |
| FE-3-149-3880 | 3 | 149 | 3880 | 1644 |
| FE-4-149-4280 | 4 | 149 | 4280 | 1450 |
| FE-4-149-4940 | 4 | 149 | 4940 | 1529 |
| FE-4-149-4620 | 4 | 149 | 4620 | 1484 |
| FE-4-169-4280 | 4 | 169 | 4280 | 1394 |
| FE-4-169-4450 | 4 | 169 | 4450 | 1437 |
| FE-4-169-4620 | 4 | 169 | 4620 | 1479 |
| FE-4-169-4940 | 4 | 169 | 4940 | 1529 |
| FE-4-169-5000 | 4 | 169 | 5000 | 1574 |
| FE-4-169-5180 | 4 | 169 | 5180 | 1604 |
| FE-5-169-5355 | 5 | 169 | 5355 | 1394 |
| FE-5-169-5780 | 5 | 169 | 5780 | 1559 |
| FE-5-169-6180 | 5 | 169 | 6180 | 1527 |
| FE-5-169-6480 | 5 | 169 | 6480 | 1604 |
| FE-5-169-6830 | 5 | 169 | 6830 | 1674 |
| FE-5-169-7130 | 5 | 169 | 7130 | 1769 |
| FE-5-191-6180 | 5 | 191 | 6180 | 1527 |
| FE-5-191-9030 | 5 | 191 | 9030 | 2177 |
| FE-6-191-7420 | 6 | 191 | 7420 | 1677 |
| FE-5-214-6830 | 5 | 214 | 6830 | 1662 |
| FE-5-214-7130 | 5 | 214 | 7130 | 1722 |
Advantages for hydraulic cylinder:
1. More secure
With excellent structure design and the application of new
materials, to withstand the harsh conditions of sustained and
stable
work not disarticulating. To ensure the safety of drivers and
vehicles, for the user to create the most valuable safety
assurance!
2. Faster unloading speed.
With excellent structure design, promote unloading speed.
3. The lifting frequency higher
Suitable for all-weather shuttle high frequency operation, stable
performance, low failure rate,
increase the number of transport, reduce the parking time!
4. A stronger ability to adapt to the environment
Using innovative patented technology and the application of new
material seal can adapt
to -40~110 DEG C temperature range, high temperature and low
temperature operation can ensure the excellent performance!
5. Lighter
Lower 15%~20% than the other series of products with weight, lift
lifting 10%~15%!
6.Lift more
Compared with other products with lift lifting 10%~15%. Lift
larger, more loading more returns! Lighter weight, lift larger,
lighter!
Exclusion clause:
1.Troubleshooting, diagnostic, removal, or reinstallation labor
charges;
2.Freight charges for either defective parts or new or repaired
parts unless prior written approval is obtained from WANTONG;
3.Claims for loss of time, inconvenience, loss of use, profits or
other consequential damages
4.Conditions from, alteration, accident, misuse, neglect, fire,
theft, loss, intentional damage, direct, indirect, consequential,
incidental, weather related, or any other type of damage resulting
from the use of the product;
5.Corrosion unless the material is found to be out of
specification;
6.Failure due to contamination introduced to the cylinder;
7.Paint unless out of specification;
