Double Acting Welded Agricultural Hydraulic Cylinders for Dump
Truck
How is pressure calculated in a hydraulic cylinder?
If you are calculating the pressure you are probably at the design
stage of the development of an hydraulic mechanism. You must have
already determined, by one means or another, the force acting on
the mechanism. Since pressure is, by definition, force divided by
area, if the force in Newtons divided by the area of the piston in
the hydraulic cylinder being considered, in square millimetres.
this will be the pressure required (in Megapascals) to resist that
force. It would then be normal for a pressure in excess of that
determined to cover contingencies or other known requirements.
Double Acting Hydraulic Cylinder, High Quality welded hydraulic
cylinders series. Professional, and thorough analysis and design to
all kinds of oil cylinder through High-tech means
B.Unique production process and management methods
C.Imported cushion, sealing element, oil pipe and other components
D.Holds Many Patents, High quality, high reliability, high service
life.
Parameter:
Bore: Φ45mm, Rod: Φ25mm, Stroke: Φ95.25mm
Working pressure: 16Mpa
Test pressure: 24Mpa
Temperature: -10℃- +80℃
Transmission media: mineral hydraulic oil
Seals: Parker
Double Acting Welded Agricultural Hydraulic Cylinders for Dump
Truck
|
| Application: | Agricultural Machinery, Agricultural Trucks |
| Stroke: | 200mm to 13000mm |
| Bore: | 40mm to 800mm |
| Shaft: | 12mm to 500mm |
| Work pressure: | 16Mpa to 62Mpa (2250 PSI – 10150 PSI) |
| Seal: | Hallite, Parker, Merkel, DingZing, etc. |
| Paint: | Red, Grey, Yellow, Black, etc. |
| Material: | Stainless Steel |
| Certificate: | Gs, RoHS, Ce, ISO9001 |
| Package: | Plywood Box or Pallet |
| W.P. | 160bar |
Tips: OEM service provided. We also can design by ourselves. |

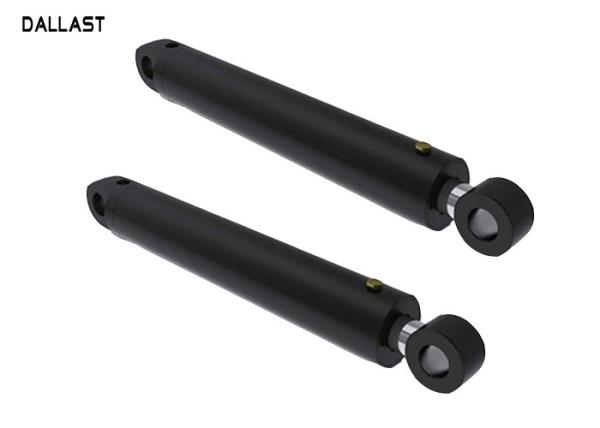

Product Show :
