Stroke 1500 mm Piston Rod Double Acting Industrial Hydraulic Oil
Cylinder
Industrial Hydraulic Cylinder

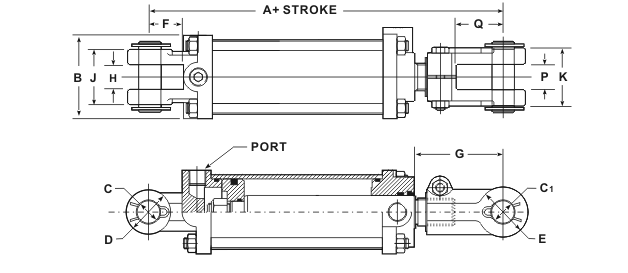

| Bore | A | A | C | C | G | G |
| (ASAE-8) | (ASAE-16) | (ASAE-8) | (ASAE-16) | (ASAE-8) | (ASAE-16) |
| 2'' | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 6 3/16" | 9 7/16" |
| 2.5'' | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 6 3/16" | 9 7/16" |
| 3'' | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 15/16" | 9 3/16" |
| 3.5'' | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 15/16" | 9 3/16" |
| 4'' | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 7/8" | 9 1/8" |
| 4.5'' | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 5 5/8" | 8 7/8" |
| 5'' | 12 1/4" | 15 1/2" | 1 1/64" | 1 17/64" | 4 11/16" | 7 15/16" |
Technical Parameter:
1. This is double acting pushing cylinder.
2. Cylinder structure is simple with high reliability.
3. The cylinder tube inside is hard chrome plated. When assembly,
lubricate the head cap and internal surface to prevent the rust and
prolong its service life.
4. Air venting device is installed at the end of cylinder's hollow
rod for air venting after assembly.
5. The air venting device adopts special vent screw for car brake
device to prevent air pollution during cylinder's air venting.
We also can customize according to your requirement and drawings.
Hope to have cooperation with you soon! If possible, please kindly
send us the drawings.
With its versatile design and manufacturing capabilities, Dallast
has several hydraulic cylinder series: standard hydraulic
cylinders, industrial machinery, vehicle equipment, lifting
equipment, construction machinery and other applications. Adhere to
the excellent quality, reasonable price standards, excellent
quality assurance, best after-sales service, we won the praise and
trust from our customers and have established long-term business
relations with some customers If you have any questions concerning
our products, please contact us
FAQ
Q1: How to make payment?
A1: Once order confirmed, we will prepare proforma invoice with our
banking details.
Q2: How long does it take to process orders?
A2: It usually takes 10-14 business days to process most orders for
no stock. If stock available, it only takes 2- 3 business days.
Q3: What is the packing method?
A3: For small piece, we use carton box. For big piece, we use
exporting grade plywood case.
Q4: How to ship?
A4: By sea, air or International express(DHL, FEDEX,UPS...) are all
available.
Q5: What is the warranty?
A5: 12 months against B/L date.
