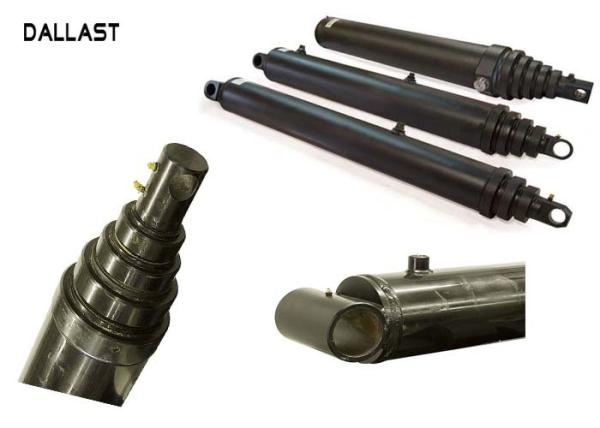

3 Stage Parker Dump Truck Single Acting Telescopic Hydraulic
Cylinder
| Parker | Model No. | First Stage Diameter | Stroke(A) | Closed Length(B) | Open Length(C) |
|
| S53DC-66-72 | 3TG F5*72 | 5" | 72"(1829mm) | 37.19" (945mm) | 109.19" (2773mm) |
| S53DC-66-84 | 3TG F5*84 | 5'' | 84" (2134mm) | 41.19" (1046mm) | 125.19" (3180mm) |
| S53DC-65-107 | 3TG F5*107 | 5" | 107.56" (2732mm) | 48.38" (1229mm) | 155.94" (3961mm) |
| S53DC-65-126 | 3TG F5*126 | 5" | 126.63" (3216mm) | 54.56" (1386mm) | 181.19" (4602mm) |
| S63DC-101-86 | 3TG F6*86 | 6" | 86.75" (2203mm) | 40.88" (1038mm) | 127.63" (3241mm) |
| S63DC-101-104 | 3TG F6*104 | 6" | 103.94" (2640mm) | 47" (1194mm) | 150.94" (3834mm) |
| S63DC-101-107 | 3TG F6*107 | 6" | 107.56" (2732mm) | 48.38" (1289mm) | 155.94" (3961mm) |
| S63DC-97-111 | 3TG F6*111 | 6'' | 111" (2819mm) | 49.94" (1268mm) | 160.94" (4087mm) |
| S63DC-102-120 | 3TG F6*120 | 6'' | 120" (3048mm) | 53.5" (1359mm) | 173.5" (4407mm) |
| S63DC-97-123 | 3TG F6*123 | 6'' | 123" (3124mm) | 54.94" (1395mm) | 177.94" (4519mm) |
| S63DC-102-126 | 3TG F6*126 | 6'' | 126.31"(3208mm) | 54.56" (1386mm) | 180.87" (4594mm) |
| S63DC-101-140 | 3TG F6*140 | 6'' | 140.25" (3562mm) | 59.81" (1519mm) | 200.06" (5081mm) |
| S64DC-12-135 | 4TG F6*135 | 6'' | 135" (3429mm) | 47.19" (1199mm) | 182.19" (4628mm) |
| S64DC-14-156 | 4TG F6*156 | 6'' | 156" (3962mm) | 53.62" (1362mm) | 209.62" (5324mm) |
| S73DC-66-110 | 3TG F7*110 | 7" | 110.63" (2810mm) | 50.06" (1271mm) | 160.69" (4081mm) |
| S73DC-66-120 | 3TG F7*120 | 7" | 120" (3048mm) | 53.12" (1349mm) | 173.12" (4397mm) |
| S73DC-66-124 | 3TG F7*124 | 7" | 124.88" (3172mm) | 54.81" (1392mm) | 179.69" (4564mm) |
| S73DC-66-129 | 3TG F7*129 | 7" | 129" (3277mm) | 56.5" (1435mm) | 185.5" (4712mm) |
| S73DC-66-140 | 3TG F7*140 | 7" | 140.44" (3567mm) | 60" (1524mm) | 200.44" (5091mm) |
| S73DC-66-150 | 3TG F7*150 | 7" | 150" (3810mm) | 63.50" (1613mm) | 213.50" (5423mm) |
Parker single acting telescopic cylinders provide value through
proven reliability, efficient performance and the quality that you
expect from every Parker Cylinder Division product line. Each
Parker single acting telescopic hydraulic cylinder features
threaded steel stop rings for ease of service and reliable
stopping, welded overlaps for increased service life, and longer
sleeve overlap for improved stability.
Features
Features 25% increase in operating pressure to 2,500 psi (127 bar)
for improved strength and performance
Improves productivity and reduces long-term costs
Lighter in weight by an average 4% due to smaller gaps between
stages and decreased space between sleeves
Requires less hydraulic oil to fill cylinder
Enables 14% average reduction in cycle time
Higher-pressure rating may allow customers to downsize cylinder and
potentially hydraulic reservoir
High pressure combined with larger plunger size results in
increased lifting force over previous cylinder design
Thicker walls and wider bearings result in average 25% improvement
to cylinder column strength, helping to provide longer cylinder
life
Polyurethane U-cup seals and umbrella-style wipers provide more
robust sealing package to minimize contaminate ingression
FAQ:
1: Do you have quality control system?
Answer: Yes, we have Strict Quality Control System from Raw
Material to the final finished products to customer.
2: Do your products come with a warranty?
Answer: Yes, Period of 14 months from the date of manufacture. The
manufacture date is engraved on the label of every cylinder.
3: Hydraulic cylinder internal leakage?
Answer:3 main reasons causing internal leakage: Overload, polishing
bad controlled, cheap seal kits. As is known to all, vehicles in
China are often overloaded, our products all designed to bear the
overload power. Advanced equipment could assure the polish
processing. And we use the imported/TOP brand seals to meet
customers' requirement.
4:Does your telescopic cylinder adopt chrome plating for every
stage.
Chrome-plating technology is adopted for every stage of telescopic
cylinders.
