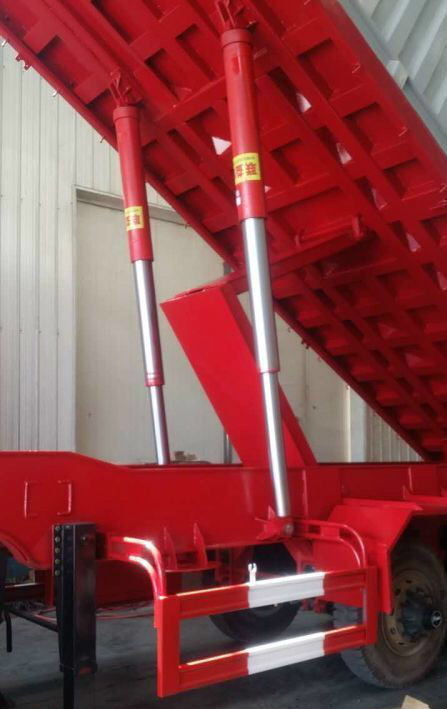

Name:Single Acting Hydraulic Oil Cylinder for Agricultural Vehicles Dump Truck tipper

Multi-stage telescopic sleeve cylinder

Multi-stage hydraulic cylinder for large stroke and installation distance or total length (stroke can be greater than the installation distance or total length) occasions, single-acting and double-acting. The company's hydraulic cylinder with a compact layout, reasonable structure, reliable work, easy assembly and disassembly, easy maintenance and so on. Widely used in various mining machinery, lifting transport machinery, environmental protection machinery and transport machinery (wrecker). The series of hydraulic cylinder working pressure, working stroke, installation distance, the use of series, all levels of stroke and piston rod diameter and other parameters can be designed according to customer needs.

① other parameters of the main components: Bore diameter: D = 140mm; cylinder diameter: = 165mm; cylinder wall thickness: = 12.5mm; cylinder limit thrust: = 10T; cylinder speed ratio = 0.5.

② cylinder installation: flange and Y connector after installation.

③ the choice of sealing device: Selection of polyurethane (PU) and PTFE seals, in order to achieve a good sealing effect.

④ choice of working medium: Because at room temperature, so choose ordinary 46 # anti-wear hydraulic oil can be

Users can according to their own needs, the piston rod connection thread, installation size, the use of pressure and other special requirements to custiomized.

TG series hydraulic cylinder for vechiles

Shenzhen Dallast Technology Co ., Ltd. it is hydraulic cylinder manufacturing enterprise integrated with professional designing, production and sales . Company focused, specialized in various types of hydraulic cylinder.Is widely used in dump trucks , dump trailers, garbage trucks, excavators, loaders , forklifts, cranes and other projects , ships, mining machinery and fire engines , sanitation vehicles and other special vehicles, agricultural machinery , heavy machinery and many other fields .
