Scissor Lifts Hydraulic Hoist Cylinder 3 / 4 / 5 Stage ISO9001 Certification

Scissor Lifts 3 / 4 / 5 Stage Hydraulic Test Hydraulic Hoist Cylinder

Description:

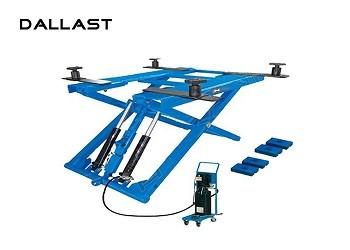

Stationary scissor car lift platform is a widely used car lift equipment.It's scissor structure, make the lifting platform stability ,wide platform and high bearing capacity,when lifting has higher .It makes aloft work more efficient and more security.It makes parking your car in the upstairs become possibility and more efficient and more security.

Advantages:
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection devices locking device for falling protection.

Advance payment 30 days after delivery.

Technical Data:

Lifting capacity:	2700kg/6000lbs	Max lifting height:	1200mm
Min. Height:	110mm	Platform width:	1000mm
Platform length:	1685mm	Lifting time:	30s
Motor power:	2.2kw	Air supply:	6-8 bar
Weight:	451kg	Packing size:	2300x1050x230+900x400x500mm
Power supply:	110v/220v/380v	20GP Container:	36 sets

Specifications

This four wheel alignment lift ,with concealing structure for the two levels and superior.more convenient usage .

This four wheel alignment car lift's features:

1. Sliding blocks adopt oil free super-wearable materials.

2. With hydraulic lock and mechanical dual-gear safety-claw lock double safety device,automatically open when lowering. By lock operation can has the safety-claw located adversely,safe&reliable.

3. Adopt combined anti-abrasive material roll cage which occupied sliding flexible, especially for the four wheel alignment.

4. Adjustable son-lifting platform length is suitable for various types of automobile.

5. Adjustable position for the turntable of front wheel for rear wheel which could satisfy the auto with long or short axle.

6. The pneumatic double-teeth self-locking system and the anti-explosive pipe insurance structures are automatic opening when lowering. The sliding blocks is made by oil free and super-friction materials.

7. Stable and reliable equipment is relayed on imported hydraulic,pneumatic and electrical componenets.
