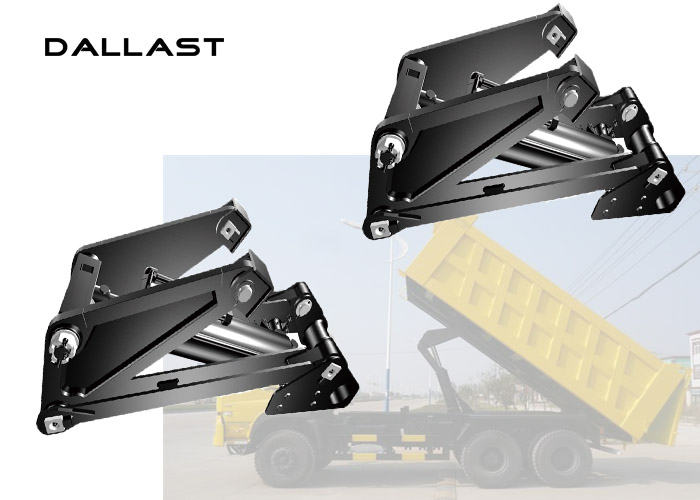

Horizontal Hydraulic Mechanism Of Dump Truck Engine Hydraulic Hoist
Cylinder
Models | Hoist cylinder |
Working pressure (MPa)(kgf/cm²) |
Inner diameter |
Stroke(mm) | Min close distance(mm) |
Piston rod diameter |
Max pressure (MPa)(kgf/cm²) |
| KEM-92 dump hoist | 6.4 / 65 | 160 | 405 | 666 | 45 | 14.7/ 150 |
| KRM-143 dump hoist | 6.4/65 | 140 | 504 | 727 | 60 | 14.7/150 |
| KRM-160S dump hoist | 6.9/70 | 160 | 561 | 914 | 70 | 15.7/160 |
| KRM-183 dump hoist | 11.8/120 | 180 | 832 | 1108 | 80 | 20.6/210 |
| KRM-201 dump hoist | 10.3/105 | 200 | 878 | 1211 | 100 | 20.6/210 |
| KRM-220 42’’ dump hoist | 9.8/100 | 220 | 865 | 1197 | 100 | 20.6/210 |
| KRM-220 62’’dump hoist | 9.8/100 | 220 | 1338 | 1696 | 100 | 20.6/210 |
Product Description
Product: Car Lift Hydraulic Cylinder
Order Instruction:
1. Customer can select cylinder model and bore according to the
load size and mounting mode.
2. The stroke can be selected from the range in the table at your
choice.
PARAMETER
Max Cylinder Bore 280mm
Min Cylinder Bore 10mm
Max Piston Rod Dia. 280mm
Min Piston Rod Dia. 10mm
Max Retract Length 3500mm
Min Retract Length 50mm
Max Stretch Length Single stage cylinder 6500mm
Dual stage cylinder 12500mm
Min Stretch Length 60mm
Max Working Pressure 4500PSI
Min Working Pressure 1000PSI
Working Pressure of Heavy-duty Cylinder 7500PSI
Intended Use: Lifting machinery.
Service and Quality Assurance: OEM service is offered too.
Our design Dept. and strict QC Dept. can control the quality in
steady.
1. Clevis End Mounting
2. 2320 PSI Working Pressure, 3"Bore, 70" -72.5"Stroke, 1"Rod
Diameter
3. Black, double Acting Application
Our companies can customize the design, the production of all types
of excavator’s hydraulic cylinder. We have sets of advanced
cylinder production equipment. The cylinder liners are made of cold
drawn seamless steel tubes with strong honing technique. The
cylinder length can reach up to 7m with diameters from φ40 to φ500.
The piston rods are made of chrome steel with special heat
treatment. The diiron sing technique is applied to the surface,
with makes it high in smooth finish with tough inside and hard
outside. The piston rod’s diameters are from φ5 to φ180, equipped
with high quality seals. The quality of our cylinders is guaranteed
by the test of high-pressure test bed. We can serve you with our
quality products, reasonable price, and timely delivery.
