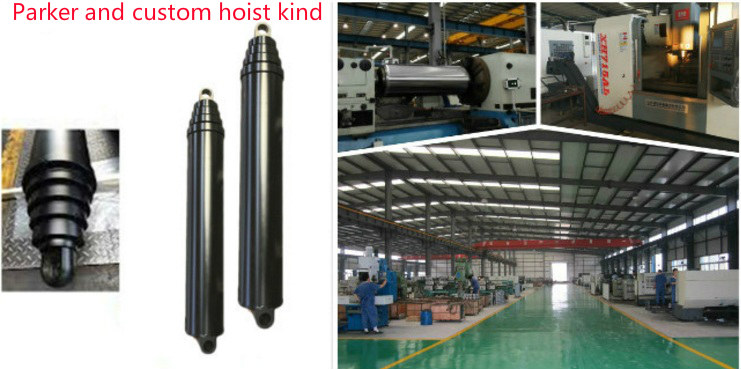

| Parker and Custom Hoists Kind |
| Parker | Model No. | First Stage Diameter | Stage | Stroke | Closed Length | Open Length |
|
| S53DC-66-72 | 3TG F5*72 | 5" | 3 | 72"(1829mm) | 37.19" (945mm) | 109.19" (2773mm) |
| S53DC-66-84 | 3TG F5*84 | 5'' | 3 | 84" (2134mm) | 41.19" (1046mm) | 125.19" (3180mm) |
| S53DC-65-107 | 3TG F5*107 | 5" | 3 | 107.56" (2732mm) | 48.38" (1229mm) | 155.94" (3961mm) |
| S53DC-65-126 | 3TG F5*126 | 5" | 3 | 126.63" (3216mm) | 54.56" (1386mm) | 181.19" (4602mm) |
| S63DC-101-86 | 3TG F6*86 | 6" | 3 | 86.75" (2203mm) | 40.88" (1038mm) | 127.63" (3241mm) |
| S63DC-101-104 | 3TG F6*104 | 6" | 3 | 103.94" (2640mm) | 47" (1194mm) | 150.94" (3834mm) |
| S63DC-101-107 | 3TG F6*107 | 6" | 3 | 107.56" (2732mm) | 48.38" (1289mm) | 155.94" (3961mm) |
| S63DC-97-111 | 3TG F6*111 | 6'' | 3 | 111" (2819mm) | 49.94" (1268mm) | 160.94" (4087mm) |
| S63DC-102-120 | 3TG F6*120 | 6'' | 3 | 120" (3048mm) | 53.5" (1359mm) | 173.5" (4407mm) |
| S63DC-97-123 | 3TG F6*123 | 6'' | 3 | 123" (3124mm) | 54.94" (1395mm) | 177.94" (4519mm) |
| S63DC-102-126 | 3TG F6*126 | 6'' | 3 | 126.31"(3208mm) | 54.56" (1386mm) | 180.87" (4594mm) |
| S63DC-101-140 | 3TG F6*140 | 6'' | 3 | 140.25" (3562mm) | 59.81" (1519mm) | 200.06" (5081mm) |
| S64DC-12-135 | 4TG F6*135 | 6'' | 4 | 135" (3429mm) | 47.19" (1199mm) | 182.19" (4628mm) |
| S64DC-14-156 | 4TG F6*156 | 6'' | 4 | 156" (3962mm) | 53.62" (1362mm) | 209.62" (5324mm) |
| S73DC-66-110 | 3TG F7*110 | 7" | 3 | 110.63" (2810mm) | 50.06" (1271mm) | 160.69" (4081mm) |
| S73DC-66-120 | 3TG F7*120 | 7" | 3 | 120" (3048mm) | 53.12" (1349mm) | 173.12" (4397mm) |
| S73DC-66-124 | 3TG F7*124 | 7" | 3 | 124.88" (3172mm) | 54.81" (1392mm) | 179.69" (4564mm) |
| S73DC-66-129 | 3TG F7*129 | 7" | 3 | 129" (3277mm) | 56.5" (1435mm) | 185.5" (4712mm) |
| S73DC-66-140 | 3TG F7*140 | 7" | 3 | 140.44" (3567mm) | 60" (1524mm) | 200.44" (5091mm) |
| S73DC-66-150 | 3TG F7*150 | 7" | 3 | 150" (3810mm) | 63.50" (1613mm) | 213.50" (5423mm) |
| S74DC-74-120 | 4TG F7*120 | 7" | 4 | 120" (3048mm) | 44.12" (1120mm) | 164.12" (4168mm) |
| S74DC-74-135 | 4TG F7*135 | 7" | 4 | 135" (3429mm) | 48.43" (1230mm) | 183.44" (4659mm) |
| S74DC-74-140 | 4TG F7*140 | 7" | 4 | 140" (3556mm) | 49.75" (1263mm) | 189.75" (4819mm) |
| S74DC-74-156 | 4TG F7*156 | 7" | 4 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| S74DC-74-161 | 4TG F7*161 | 7" | 4 | 161.75" (4108mm) | 55.31" (1405) | 217.06" (5513mm) |
| S74DC-74-167 | 4TG F7*167 | 7" | 4 | 167" (4242mm) | 56.38" (1432mm) | 223.38" (5674mm) |
| S74DC-74-180 | 4TG F7*180 | 7" | 4 | 180" (4572mm) | 61.12" (1552mm) | 241.12" (6124mm) |
| S84DC-66-148 | 4TG F8*148 | 8" | 4 | 147.75" (3753mm) | 51.50" (1308mm) | 199.25" (5061mm) |
| S84DC-66-156 | 4TG F8*156 | 8" | 4 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| S84DC-66-161 | 4TG F8*161 | 8" | 4 | 160" (4064mm) | 55.75" (1416mm) | 215.75" (5480mm) |
| S84DC-66-170 | 4TG F8*170 | 8" | 4 | 170" (4318mm) | 57.25" (1454mm) | 227.25" (5481mm) |
| S84DC-66-180 | 4TG F8*180 | 8" | 4 | 180" (4572mm) | 59.75" (1518mm) | 239.75" (6090mm) |
| S85DC-66-170 | 5TG F8*170 | 8" | 5 | 170" (4318mm) | 49.88" (1267mm) | 219.88" (5585mm) |
| S85DC-66-190 | 5TG F8*190 | 8" | 5 | 189" (4800mm) | 54.62" (1387mm) | 243.62" (6188mm) |
| S85DC-66-220 | 5TG F8*220 | 8" | 5 | 220" (5588mm) | 60" (1524mm) | 280" (7112mm) |
| S85DC-66-235 | 5TG F8*235 | 8" | 5 | 234" (5944mm) | 64.62" (1641mm) | 298.62" (7585mm) |
| S85DC-66-250 | 5TG F8*250 | 8" | 5 | 249" (6325mm) | 68.62" (1743mm) | 317.62" (8068mm) |
| S85DC-66-265 | 5TG F8*265 | 8" | 5 | 265" (6731mm) | 71" (1803mm) | 336" (8534mm) |
| S85DC-66-285 | 5TG F8*285 | 8" | 5 | 285" (7239mm) | 78.5" (1994mm) | 363.5" (9233mm) |
| S95DC-52-220 | 5TG F9*220 | 9" | 5 | 218" (5537mm) | 62.44" (1586mm) | 280.44" (7123mm) |
| S95DC-52-235 | 5TG F9*235 | 9" | 5 | 233" (5918mm) | 65.44" (1662mm) | 298.44" (7580mm) |
| S95DC-52-250 | 5TG F9*250 | 9" | 5 | 248" (6299mm) | 68.44" (1738mm) | 316.44" (8037mm) |
| S95DC-52-265 | 5TG F9*265 | 9" | 5 | 265" (6731mm) | 72.62" (1844mm) | 337.62" (8575mm) |
| S95DC-52-280 | 5TG F9*280 | 9" | 5 | 280" (7112mm) | 72.62" (1997mm) | 358.62" (9109mm) |
| S95DC-52-300 | 5TG F9*300 | 9" | 5 | 300" (7620mm) | 79" (2007mm) | 379" (9627mm) |
| S95DC-52-320 | 5TG F9*320 | 9" | 5 | 320" (8128mm) | 83" (2108mm) | 403" (9628mm) |
| S95DC-52-340 | 5TG F9*340 | 9" | 5 | 340" (8636mm) | 87" (2210mm) | 427" (10846mm) |
Dump Truck Multistage Telescopic Front End Double Acting FC
Hydraulic Cylinder
We can provide you with many sorts of single acting telescopic
hydraulic cylinder and multistage telescopic hydraulic cylinder
which are widely used for trailers, tippers and dump truck. The
bore size of Dump Truck Hydraulic Cylinder is range 75mm to 278mm
which can provide the max power of 120t. We also can design it
according to your request.
Specification:
| Application | Dump truck, Tipper, Trailer, hoist |
| Material of cylinder tube | steel |
| Coating | All tubes are chrome plated |
| Working pressure | 10MPa-25MPa |
| Bore size | 85mm-248mm |
| capacity | 7t-120t |
| Stroke | 2000mm-12000mm |
| Color | Black, Blue, Yellow, White, Red etc |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Plunger | 20#, 45# steel with high frequency quenching |
| Certification | ISO9001: 2008, SGS, TS16949 |
| Warranty | One year after shipping arrival |
| working temperature | -30° C to 80°C |
Product description:
Telescopic front end hydraulic Cylinder
The multistage telescopic hydraulic cylinder(FC/FE/FEE) is used for
dump trucks, Iis interchangeable with Holland's Hyva and UK'S
Edbore. Bore size: 75-278mm. Max stroke:12000mm. Maxpressure: 24
MPa. Max capacity: 120t. We also can design it according to you
request.
Quality:
Good choice for our hydraulic cylinder
1. With Rolling technology, the cylinder are straighter, the
surface are harder and its quality are more durable.
2. All piston rod have to go through comprehensive processing: Heat
treating Lathing Grinding Polishing Hard chrome plating Polishing,
this comprehensive processing make the cylinder harder, wearable
and acid.
3. Using imported materials for seal kits.
4. The structure kits are made by high-strength Manganese plate
5. Advanced surface treatment:
A. Environmental automatically pipelined painting
B. Cleaning with automatic washing machine
C. Assembling in seal clean workshop
FAQ:
1. Are you a manufacturer?
Yes, we focus on the hydraulic industry for 15 years.
We are professional manufacturer in hydraulic. We will provide
competitive price.
2. What is your warranty?
Our products are all available for one-year free warranty and
product lifetime consulting service.
3. How to ship your product?
We are transported by sea, by air or by international express.
According to your needs.
4. Do you support OEM service?
Yes. OEM service is available.
We are pleased to process according to the customer's drawings.
5. Is your design reasonable?
We have professional R&D team with rich design experience.
We also establish strict but scientific product testing system so
that products have perfect performance.
6. How to choose which model hydraulic cylinder to buy?
Please kindly send us your drawings, models or providing us your
parameters and
specification of the hydraulic cylinder like sleeves O.D., total
stroke, rated pressure, closed length, vehicle body length, etc. We
can determine the most suitable model for you.
7. How long it will take from ordering to delivering?
It depends on the ordering quantity. Generally, we will take
15-30days. If there are any changes, we will inform you in time.
