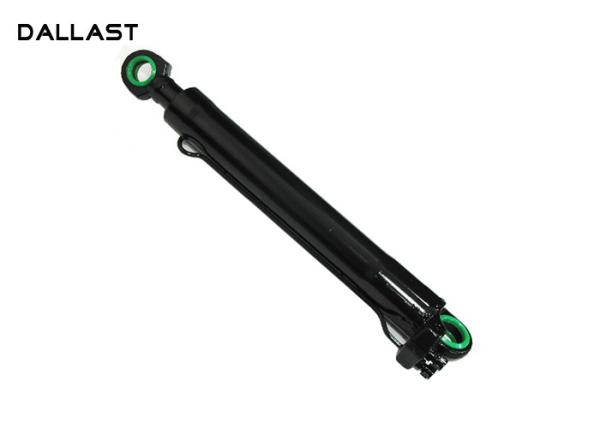

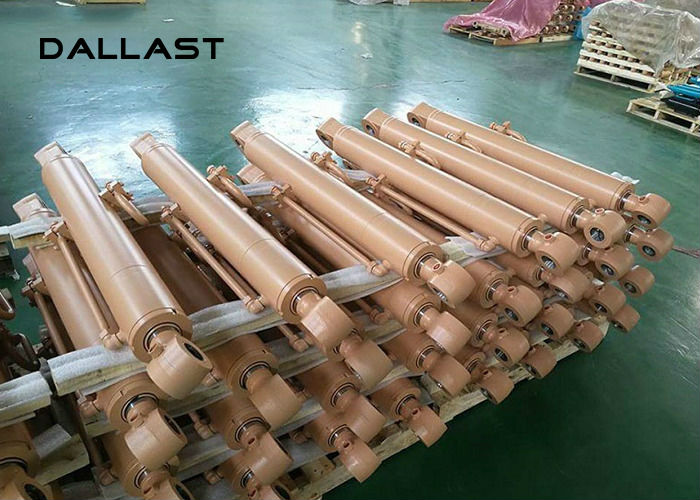

Eye Cross tube Double Acting Hydraulic Cylinder for Construction
Machinery

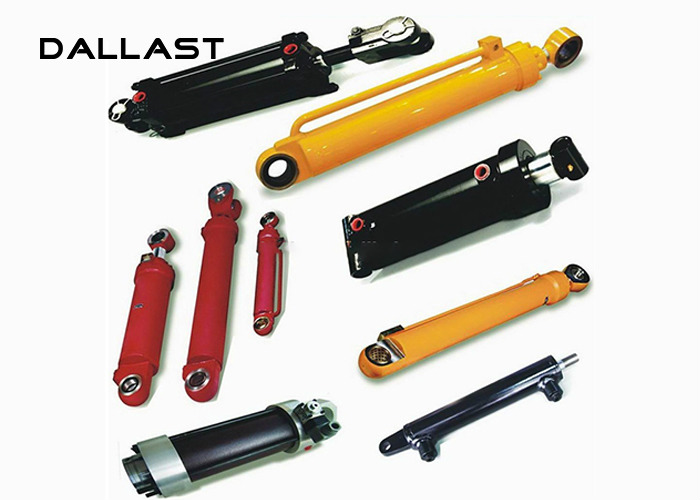

We can design according to user requirements, manufacturing various
types of standards, non-standard hydraulic cylinders,
Hydraulic Cylinder: HSG-01 Engineering Cylinder, Y-HG1 (YG)
Metallurgical Cylinder, CD250 CD350 CG250 CG350 Heavy Metallurgical
Cylinder, DG Vehicle Cylinder, Heavy Duty Hydraulic Cylinder,
Plunger Cylinder, Woodworking Machinery Hydraulic Cylinder,
Corrosion Resistant Hydraulic Cylinder and special non-standard
large diameter, long stroke hydraulic cylinder
Piston hydraulic cylinder can be divided into single-rod and
double-rod two structures, the fixed way by the cylinder fixed and
fixed piston rod two, according to the role of hydraulic pressure
has a single role and double-acting. In a single role In the
hydraulic cylinder, the pressure oil is only provided in a cavity
of the hydraulic cylinder, which realizes unidirectional movement
of the cylinder by hydraulic pressure and external force (such as
spring force, self-weight or external load) in the opposite
direction; and the double-acting hydraulic cylinder piston movement
in both directions alternately into the two chambers through the
oil, the role of hydraulic pressure to complete, it is only one
side of the piston with a piston rod, so the effective area of
the two chambers are different. In the oil the same amount, the
different chamber into the oil, the piston speed of movement is
different; in the same load force to be overcome, the different
chamber into the oil, the required oil pressure is different, or
set in the system pressure, sanitation Garbage truck hydraulic
cylinder movement in both directions can overcome the load force is
different.
| HSG series hydraulic cylinder for construction machinery |
| Model | Strock
(mm) | Bore Diameter
(mm) | Rod Diamter
(mm) | Push(KN) | Pull(KN) |
| HSGK01-160/90E-131 | 715 | 160 | 90 | 321.7 | 219.9 |
| HSGL01-100/60E-131 | 1200 | 100 | 60 | 125.66 | 87.65 |
| HSGK01-80/50E-131 | 700 | 80 | 50 | 101.79 | 70.37 |
| HSGK01-80/50E-131 | 640 | 80 | 50 | 101.79 | 70.37 |
| HSGK01-80/50/E-131 | 550 | 80 | 50 | 101.79 | 70.73 |
| HSGL01-80/50-131 | 500 | 80 | 50 | 80.43 | 54.98 |
| HSGL01-80/50E-131 | 440 | 80 | 50 | 80.43 | 43.41 |
| HSGL01-63/35E-131 | 200 | 63 | 35 | 50 | 34.5 |
| HSGL01-63/35E-131 | 300 | 63 | 35 | 50 | 34.5 |
| HSGL01-50/28E-131 | 140 | 50 | 28 | 31.42 | 21.56 |
Model: variety of specifications
Type: Engineering hydraulic cylinder
The maximum stroke: 3000MM
Bore diameter: 40 ~ 1000mm
Rod diameter: 22-480MM
Special Non-standard large diameter, long stroke hydraulic cylinder
can customized for you.
