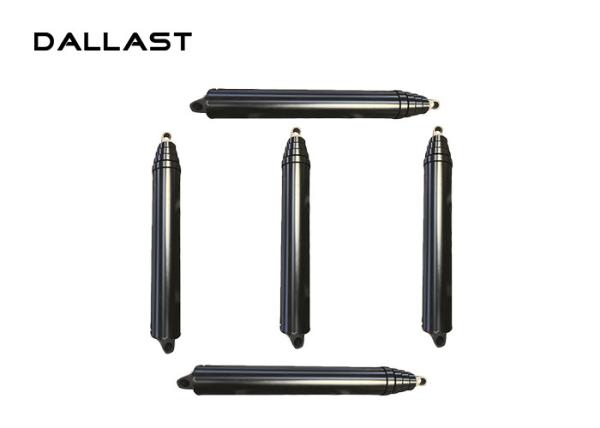

Hyva Kind Chromed Hydraulic With Piston Cylinder For Dump Truck
Dallast have professional hydraulic cylinder production base with
nearly 30 years of professional R&P and production of hydraulic
cylinder's experience. It is a set of design research and
development production, sales and service of modern hydraulic
cylinder in one of the production base.
spcification
| Tube material | Steel |
| Working pressure | 5MPa-36MPa |
| Bore size | 85mm-248mm |
| Capacity | 7t-120t |
| Max Stroke | As per client require |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Rod material | 42 Crmo 45#steel |
| Body material | Steel |
| Warranty | One year after shipping arrival |
| Working temperature | -30° C to 80°C |
| Power | Hydraulic |
| Parker and Custom Hoists Kind |
| Parker | Model No. | First Stage Diameter | Stage | Stroke | Closed Length | Open Length |
|
| S84DC-66-148 | 4TG F8*148 | 8" | 4 | 147.75" | 51.50" | 199.25" |
| S84DC-66-156 | 4TG F8*156 | 8" | 4 | 156" | 53.75" | 209.75" |
| S84DC-66-161 | 4TG F8*161 | 8" | 4 | 160" | 55.75" | 215.75" |
| S84DC-66-170 | 4TG F8*170 | 8" | 4 | 170" | 57.25" | 227.25" |
| S84DC-66-180 | 4TG F8*180 | 8" | 4 | 180" | 59.75" | 239.75" |
| S85DC-66-170 | 5TG F8*170 | 8" | 5 | 170" | 49.88" | 219.88" |
| S85DC-66-190 | 5TG F8*190 | 8" | 5 | 189" | 54.62" | 243.62" |
| S85DC-66-220 | 5TG F8*220 | 8" | 5 | 220" | 60" | 280" |
| S85DC-66-235 | 5TG F8*235 | 8" | 5 | 234" | 64.62" | 298.62" |
| S85DC-66-250 | 5TG F8*250 | 8" | 5 | 249" | 68.62" | 317.62" |
| S85DC-66-265 | 5TG F8*265 | 8" | 5 | 265" | 71" | 336" |
| S85DC-66-285 | 5TG F8*285 | 8" | 5 | 285" | 78.5" | 363.5" |
| S95DC-52-220 | 5TG F9*220 | 9" | 5 | 218" | 62.44" | 280.44" |
| S95DC-52-235 | 5TG F9*235 | 9" | 5 | 233" | 65.44" | 298.44" |
| S95DC-52-250 | 5TG F9*250 | 9" | 5 | 248" | 68.44" | 316.44" |
| S95DC-52-265 | 5TG F9*265 | 9" | 5 | 265" | 72.62" | 337.62" |
| S95DC-52-280 | 5TG F9*280 | 9" | 5 | 280" | 72.62" | 358.62" |
| S95DC-52-300 | 5TG F9*300 | 9" | 5 | 300" | 79" | 379" |
| S95DC-52-320 | 5TG F9*320 | 9" | 5 | 320" | 83" | 403" |
| S95DC-52-340 | 5TG F9*340 | 9" | 5 | 340" | 87" | 427" |
Main Features
1. Seal kits: durable and hard-wearing to ensure the small
hydraulic cylinder a long service life
2. Heat treatment: Quenching&Tempering which makes the piston
rod super high hardness.
3. Cleaning: Ultrasonic cleaning.
4. Cutting: High precision provided by automatic roller cutting
machine.
5. Testing: Ultrasonic detector, spectrograph, CMM, metallography,
chrome thickness tester.
6. Advantage: Simple structure & reliable work, easy maintenance &
diverse connecting ways of small hydraulic cylinder.
7. Plan: Different manufacturing plans for different customers.
8. MOQ: 1 PCS of small hydraulic cylinders
9. Lead time: 10~30 days depends on the small hydraulic cylinder
quantity & whether customized.
10. Warranty: Change a new small hydraulic cylinder and we pay for
the air freight in 2 years warranty time.
FAQ
Q: Which areas are your products applied in?
A: Agricultural and industrial application. For example,
tractors,mowers, mixers, drilling machine----
Q: How long is our warranty on products?
A: Usually 1 year. And our professional workers will still offer
you best after-service 1 year later. And we will fix your problem
anytime.
Q: Can I have my brand and put my logo on the products?
A: Of course. As long as you would like to, we could do that for
you.
Q: What’s your delivery time?
A: 3-4 working days if the goods have stock;15-30 working days if
no stock
